Selection of products for TOYOTA Roving Frames
FOR PRODUCTS NOT LISTED BELOW, PLEASE DO NOT HESITATE TO CONTACT US.
We also make special and custom made flyers for all types of roving frames, in all sizes.


TOYOTA FL6 | FL12 | FL14 | FL16 | FL16H | FL100
TOP-DRIVEN FLYERS
for specification please use Questionnaire UGKM/UGKML

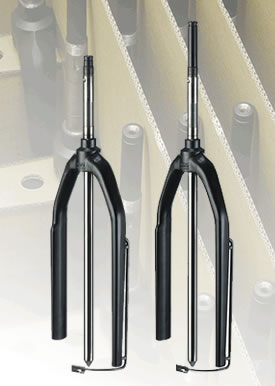

Flyer model UGKM
  • cast-in polished stainless steel tube from top to exit
  • high precision dynamic balancing up to 1800 rpm
  • heat-treated special steel presser (various designs)
  • fixed or exchangeable center spindle (22mm dia)
  • special anti-lint surface finish
  • sealing ring and twist cap
Flyer model UGKML
  • for back row of roving frames, to equalize the roving angle between flyer entrance and drafting system
  • other specifications as above

TOYOTA FH2 | FH4 | FH6
FLYERS
for specification please use Questionnaire UGR/UGRL

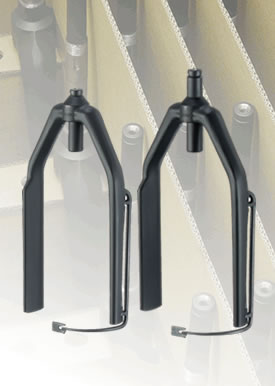

Flyer model UGR
  • Specially hardened steel cone part to fit the original spindle
  • cast-in polished stainless steel tube from top to exit
  • high precision dynamic balancing throughout the total operative speed range from 600 to 1400 rpm.
  • heat-treated special steel presser (various designs)
  • special anti-lint surface finish
  • sealing ring and twist cap
Flyer model UGRL
  • for back row of roving frames, to improve the roving angle between flyer entrance and drafting system
  • other specifications as above
Accessories for original Toyota Flyers

Twist Caps

HOLZ Twist Caps
  • HOLZ Twist Caps can be used with original Toyoda Flyers by using special adaptors.
Toyota Twist Caps
  • Available for front row without grooves and for back row with grooves

Pressers

HOLZ Pressers
  • Serie 200 for original Toyoda Flyers. Made of heat treated carbon steel with anti-static surface finish. Various shapes available.
Fixing Parts
  • Bushes, pins and screws in top standard quality
